MSK铬酸专用PVC电镀过滤机

本机可适用于耐铬酸液及各种强酸药液使用。

滤筒部分由PVC材质制成，泵浦部分采用PVDF材质。

滤材部分采用滤芯锁帽式，密封性强，药液接触部分无金属材质接触。

本机滤材可选钛材、陶瓷两大高性能滤材

本机耐温在60℃以下。

本机可选择袋式过滤。

服务热线：186-6213-8280

MS K - C - 20 - 07 - TDD - F - 2 ① ② ③ ④ ⑤ ⑥ ⑦

① MSK:MSK系列

② C : 滤筒材质为PVC

③ 20：滤材长度为20"

④ 07：滤芯数量为7支

⑤ TDD:泵浦类型

⑥ F : 泵浦材质为PVDF

⑦ 2：泵浦马力是2HP

产品介绍

本机可适用于耐铬酸液及各种强酸药液使用。

滤筒部分由PVC材质制成，泵浦部分采用PVDF材质。

滤材部分采用滤芯锁帽式，密封性强，药液接触部分无金属材质接触。

本机滤材可选钛材、陶瓷两大高性能滤材

本机耐温在60℃以下。

本机可选择袋式过滤。

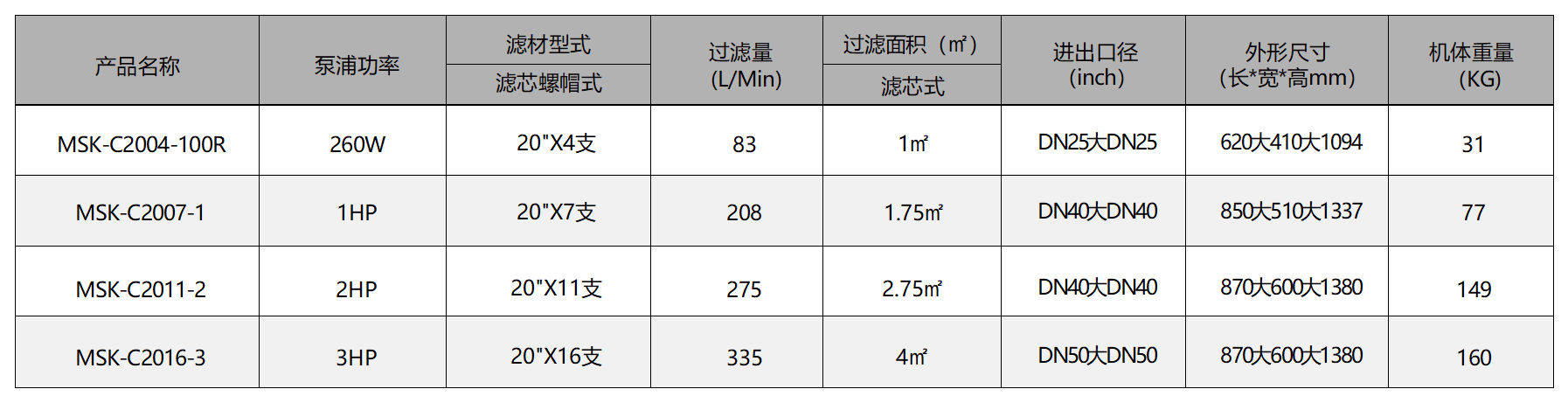

型号规格图

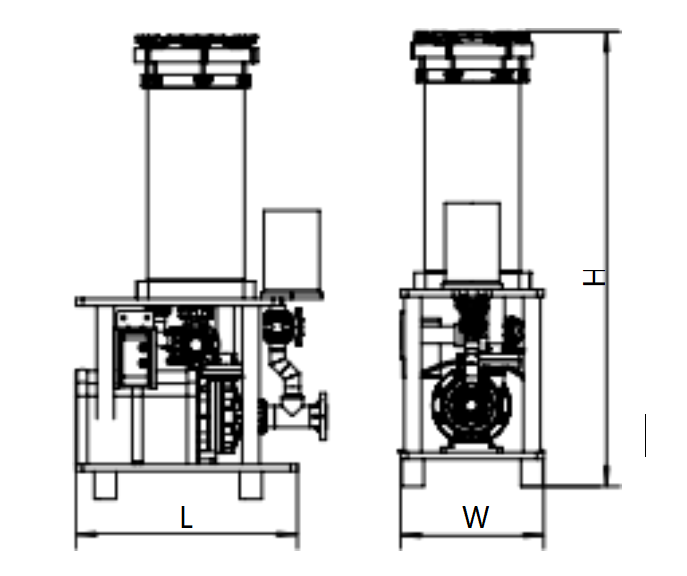

安装尺寸图
